Electric Brake Switch Sensor (Hall) M8 & M6 [TurboBrake/Dragon | Zoom/Kaabo]

Name: Electric Brake Switch Sensor (Hall) M8 & M6 [TurboBrake/Dragon | Zoom/Kaabo]
SKU: TURBOBRAKE-SWITCH-ZOOM
Price: 15.0 AUD
Availability: InStock

SKU TURBOBRAKE-SWITCH-ZOOM/M8-070

AU$15.00

Bulk pricing available for quantities of 2 units or more

Hall Sensor suits TurboBrake and Zoom levers including Dragon/Langfeite models of Predator, Hurricane, Slayer, late Cyclone, Lightning V2 & The Beast, Teverun Fighter series, models of Kaabo Wolf, Mantis Pro and select VSETT / Zero.

Variant

M8 70mm as Zoom Kaabo Factory Spare

M8 300mm as TurboBrake Spare

M6 100mm as TurboBrake Spare

In stock: 44 available

Quantity:

Buy more, save more

Quantity	Price per item	Discount
2 items	AU$12.73	15% off
6 items	AU$11.36	24% off

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Electric Brake Switch Sensor (Hall) M8 & M6 [TurboBrake/Dragon | Zoom/Kaabo]

Product Details

Brand: Kaabo

The Electric Brake Switch Sensor (Hall) M8 & M6 [TurboBrake/Dragon | Zoom/Kaabo] detects when the brake lever is engaged.
The switch forms a circuit when the lever is pulled which activates brake lights, disengages throttle and in most instances engages electric braking and presents status indicator on the display.
It is prepared lead with an round plug in choice of either M6 or M8 connector (6mm vs 8mm) and a hall effect sensor which resides in the lever, retained with included compression nut that is adjusted for calibration and secured with a grub screw.
Suits two of the most common levers which are predominate on models from from Dragon, Kaabo & VSETT, models featuring levers of:

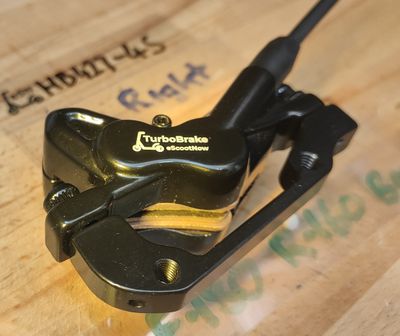

- TurboBrake levers, including those on eScooters that accompany callipers such as HB427-H and HB427-4M which are factory fitted on models of:
  - Dragon / Langfeite models of Cyclone Pro (M6 & M8), Predator (M6 & M8), Hurricane (M6), Lightning V2 (M6 & M8) and The Beast (M6 & M8).
    - As a general rule, models with the newer 4-pin charging port will have M6 type (including newer GTR/GTS series models).
  - Teverun, including models of Blade and Fighter including the Mini variants (M8).

This switch will not suit the very early Dragon models of Cyclone Pro had XOD XD-H800 callipers which were non-hall mechanical type switch, as are the GTR/GTS series models which are similar to the newer mechanical Logan switch.

Zoom levers such as those on:
- Kaabo models of Mantis & Wolf (M8).
- Earlier models of Dragon Lightning (including V2), early models of The Beast and all models of Dragon Slayer (M8).
- Non-NUTT VSETT models such as 10+ and Zero models such as 10X hydraulic versions. On these models, the electrical wiring is hard-wired (without plug/connector) to the main line. Either M6 or M8 is suitable as the connector is removed as fitment is hard-wired (soldered), connector is discarded in fitment.

The round red M8 (8mm) 2-pin male connector is the most common type used on eScooters, with much of the Dragon/Langfeite transitioning to M6. We stock both with a choice of length in the M8 variant:
- M8:
  - 70mm (total length 130mm), as Kaabo Factory Spare (Zoom).
  - 300mm (total length 370mm), as TurboBrake Spare. Use as alternative to 70mm when longer length is required.
- M6:
  - 100mm (total length 160mm), as TurboBrake Spare. These are typically 40mm longer than stock observed on Dragon/Langfeite models.
The mechanism uses magnetics with a two wire hall effect sensor. Typically replaced if the sensor has become problematic, whereby the switch inadvertently activates when lever is not depressed (often intermittent) and troubleshooting (see notes) fails to restore expected behaviour.

Notes:

Switches needs be calibrated periodically as pads wear or brakes are serviced. Calibration is performed by adjusting the compression nut where the switch cable enters the lever. If it is set too sensitive, the switch may continue to engage after the hand is released from lever which calls for it to be unscrewed so it is within appropriate threshold. There are some video's within notes - prior to adjusting or removing existing switch, ensure you backing off the grub screw that secures the connector.
The hall type switch uses magnetics therefore be mindful of the lever's proximity to other magnetic fields such as that from throttle. Close proximity of lever to throttle can cause unexpected signalling, usually unexpected brake switch activation. To correct this, increase distance / proximity of the throttle away from brake lever.
There is typically a spring at the end of the switch that holds the sensor against the compression nut. Ensure you do not have any excessive force pressing the cable as this may impact the sensor position. Push the cable into the lever against the spring, it will activate.
Remember you can disconnect the switch so as to isolate the switch from the scooter to determine if (or which of the two on the bar) is fault. You can also temporarily fit the switch from the other lever or check continuity with meter and check 5v is being delivered to it. Signal output of two wire IC's is via different current levels, however multi-meter on continuity mode is usually sufficient test.
There is no polarity applicable so for hard-wire fitting it is a simple matter of joining each of the two wires and it is best practice to have some sort of plug so you can disconnect if necessary.
This switch adopts the common convention used amongst nearly all eScooter makes and models being normally open. This means when lever is not engaged, the circuit is open ("off"). When engaged (pulled) the circuit closed (switch is "on"). Europeans term this as closer type, that is the circuit activates (closes) when activated.
This switch appears similar to that on earlier (older) the Logan levers as both have a 6.2mm diameter. The notch/key on earlier Logan type is longer and narrower than this Zoom/TurboBrake type. The Logan variant is available here.
M6 vs M8 size reference as measured by eSN from these switches. This handy reference shows the difference in size between M6 and M8 3-pin male plugs. Focus on the two in the middle. Often Chinese drawings somewhat overstate M8 sizes.
These videos demonstrate how to calibrate / replace a hall sensor switch, as a general guide to how these magnetic sensors work. While they are not all Zoom/Turbobrake specific, the same concepts apply. eSN recommends to work only on one side, over the course of several rides so it has bedded in prior to making changes to the other side. eSN recommends having the ebrake switch engage first (early, but not too early else unexpected engagement can occur) then as the lever is further engaged the physical pads engage. Allowing the electric brake to fully engage prior to physical brake pad engagement improves braking stability, reduces brake wear and reduces heat.
1. Video showing replacement of switch on NAMI Klima (Logan Lever) from Epic Cycles:
2. Video showing the replacement of switch on NAMI Klima (Logan Levers) from Halbknapp E-Scooter Shop:
3. Video showing general calibration process on a XOD Lever from VoltiBike
4. Video showing calibration from Alter Ego Electric Bikes
