NAMI Electric factory Steering Damper suit Klima model.
Suits all Klima models including Klima SE variant.
Typically required when improved ride handling and stability is desired either at speed, or to reduce risk of injury arising from unpredictable and rough terrain / pathways, making for a safer ride.
CNC machined production process, hence a little more expensive than the Burn-e bracket.
Genuine NAMI Electric factory spare.

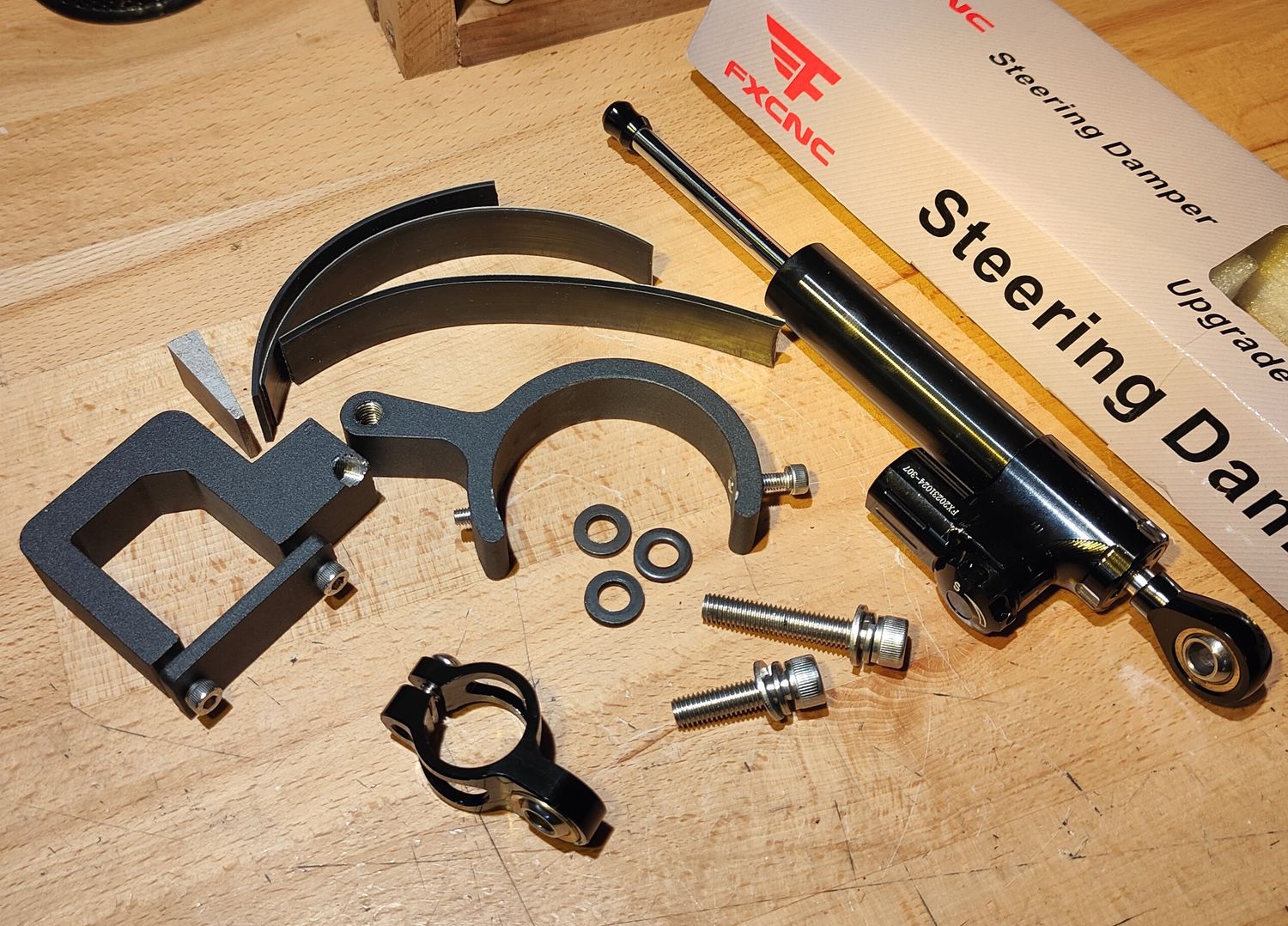

Includes M8 socket head bolts with spring washer and washer (30mm and 45mm), 3 x M8 washers (16mm, black), 3 x M5 16mm bolts and 1 x M5 12mm grub screw as per product images on the eSN timber workbench. The product images show the 1st revision (wedge) and inaugural versions which are slightly different to current version (see notes below).
Notes:
Fitting advice from the factory:

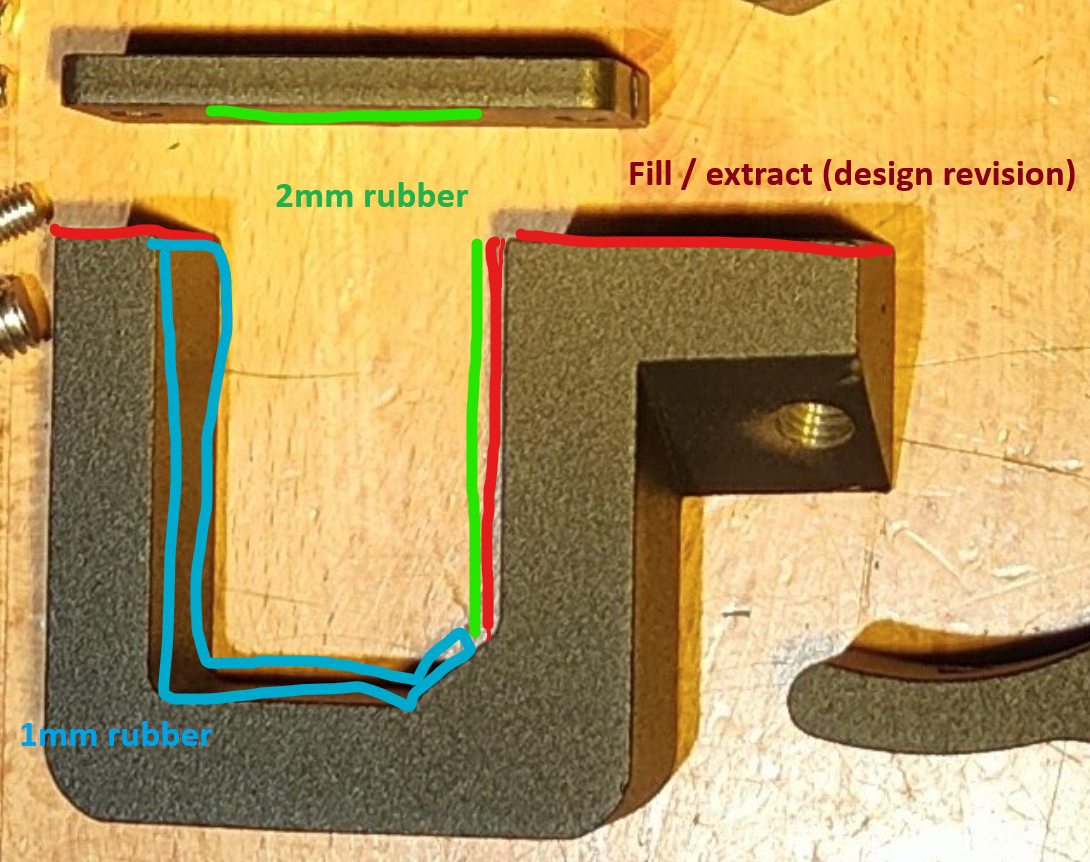

The design was enhanced on several occasions during H2 2024 (two revisions observed). Inaugural version required padding with self-adhesive anti-friction silicon rubber pad as shown below along the green and blue sections. Subsequent version included a silver wedge spacer. The current version adopts the wedge in the design of the bracket which mostly negates need for any padding or spacers. The modern versions (current stocks) have improved tolerance but always ensure the bracket is well secured to prevent force on the bolts.
